Oil Dispenser

Measuring the quantity of lubricants is a critical need in workshops and industrial plants. In some operations, the ability to conduct accurate measurements is so important that it can make the difference between making a profit or taking a loss. In other cases, inaccurate measurements or failure to take measurements can cause serious (or even disastrous) results.

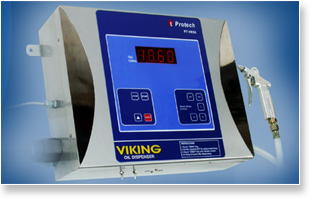

Viking is a microprocessor based dispenser , it consist of a metering equipment and a pump which can be connected to a barrel . The pump is pneumatic operated. Suitable for dispensing engine oil, diesel oil, automatic transmission fluid and anti-freeze/anti-boil, with a maximum viscosity of SAE 140.

Product Specifications

  • Accuracy : +/- 0.5% (of reading)
  • Flow range : 1-30 liters/min
  • Max. Pressure : 150psi
  • Operating temp : -10° - 60°C
  • Supply : 230V A.0 50 Hz
  • Dimensions : 400mm x 320mm x 125mm
  • Display : 4 X 1 inch Super Bright LED (LCD optional)
  • Resolution : 0.1 liters

Product Features

  • Uses oval gear meter for optimum accuracy
  • There are five variable preset totals available for use
  • Resettable barrel totaliser
  • Six digit accumulative totaliser
  • Non-drip nozzle
